Eccentric Collar
Mounted ball bearings
Table of contents
Overview
Quarter-turn locking for secure shaft attachment

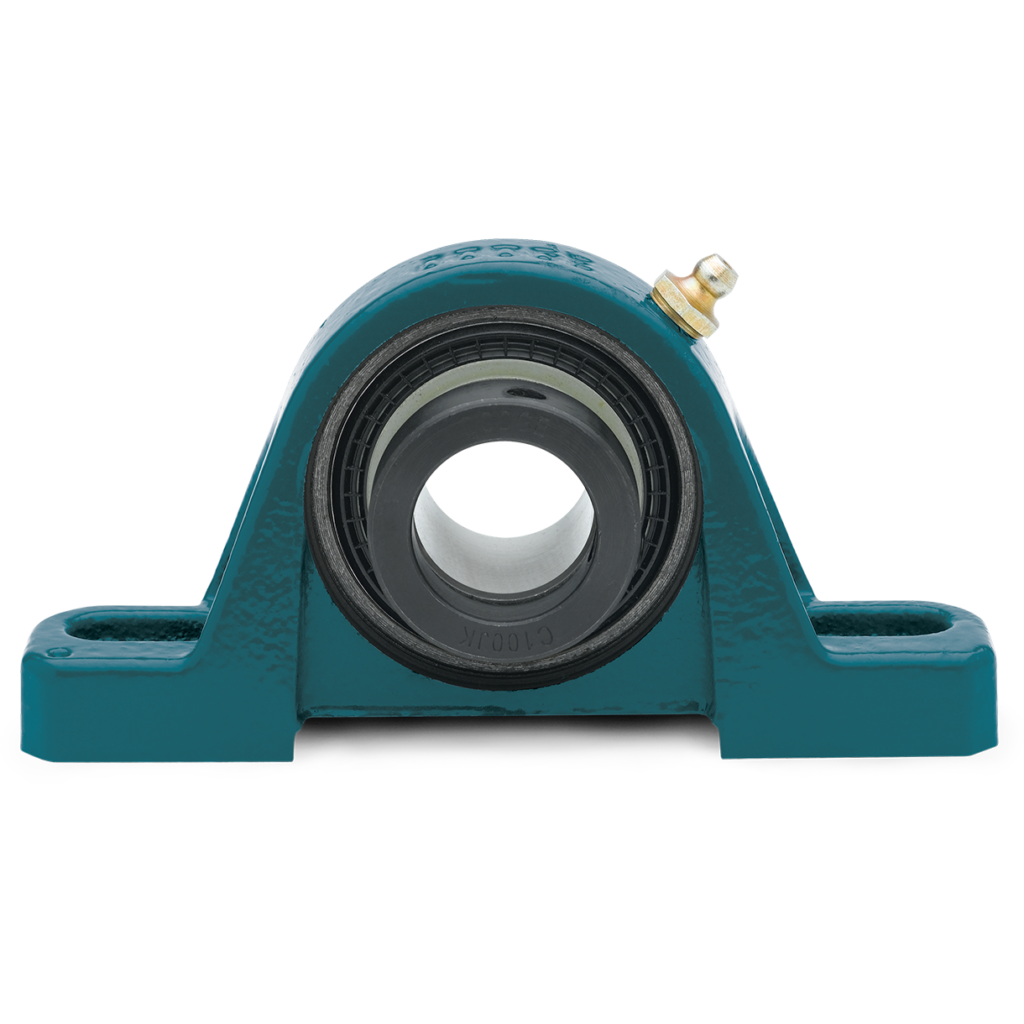

Dodge® Eccentric Collar mounted ball bearings use an eccentric locking collar that secures the bearing inner ring to the shaft. The locking collar bearings fit applications that need simple shaft attachment, shock-load capability, and options for contamination protection.
The product line spans light-, normal-, and intermediate-duty series, plus Harsh Duty™ configurations, across pillow block, flange, take-up, and hanger housing styles. Its range lets you match duty level, sealing, and lubrication to each piece of equipment while keeping one familiar eccentric collar locking method across the line.
Key features and benefits
Quarter-turn eccentric collar with one set screw
A quarter-turn in the direction of shaft rotation locks the inner ring, and one set screw holds the collar for quick, simple installation.
Case-carburized inner ring
The case-carburized inner ring supports durability and high shock-load capability in demanding equipment.
Controlled fit for ±2 degrees static misalignment
The tightly controlled fit between the bearing insert and housing allows ±2 degrees of static misalignment to accommodate minor mounting errors during installation.
DualGuard™ single-lip seal with rubberized flinger
DualGuard single-lip seals with a rubberized flinger help keep contaminants out and clean grease in, extending service life.
33 percent fiberglass-reinforced nylon cage
Heat-stabilized nylon with fiberglass reinforcement flexes under misalignment for longer life and resists fatigue better than metallic cages.
Pillow block, flange, take-up, and hanger housings
Pillow blocks, 2-, 3-, and 4-bolt flanges, tapped bases, piloted flanges, take-up units, cylindrical units, and hangers help match these bearings to equipment requirements.
Product variations
SXR/SXRB
Normal-duty mounted ball bearings with a wide inner ring, cast-iron housings, DualGuard seals, Unirex N2 lithium grease, and a fiberglass-reinforced nylon cage, in bores from 1/2 inch to 2-15/16 inches.
SXV/SXVB
Intermediate-duty mounted ball bearings with a narrow inner ring and DualGuard seals, offered in pillow block, flange, tapped base, and take-up housings in bores from 1/2 inch to 2-3/16 inches.
SLX
Light-duty mounted ball bearings with a narrow inner ring and stamped-steel housing, offered in pillow block and 2-, 3-, and 4-bolt flange styles.
ABHS
Air baggage handling system (ABHS) mounted ball bearings with DualGuard seals, an anti-rotation pin, and housings machined to accept pop-in yellow end covers.
Harsh Duty series
Eccentric Collar Harsh Duty
Eccentric Collar Harsh Duty builds on the proven self-locking cam design for harsh environments. An upgraded QuadGuard™ sealing system, patented Maxlife™ cage, and optimized lubrication improve protection against solid particulate contamination to help maintain consistent performance.

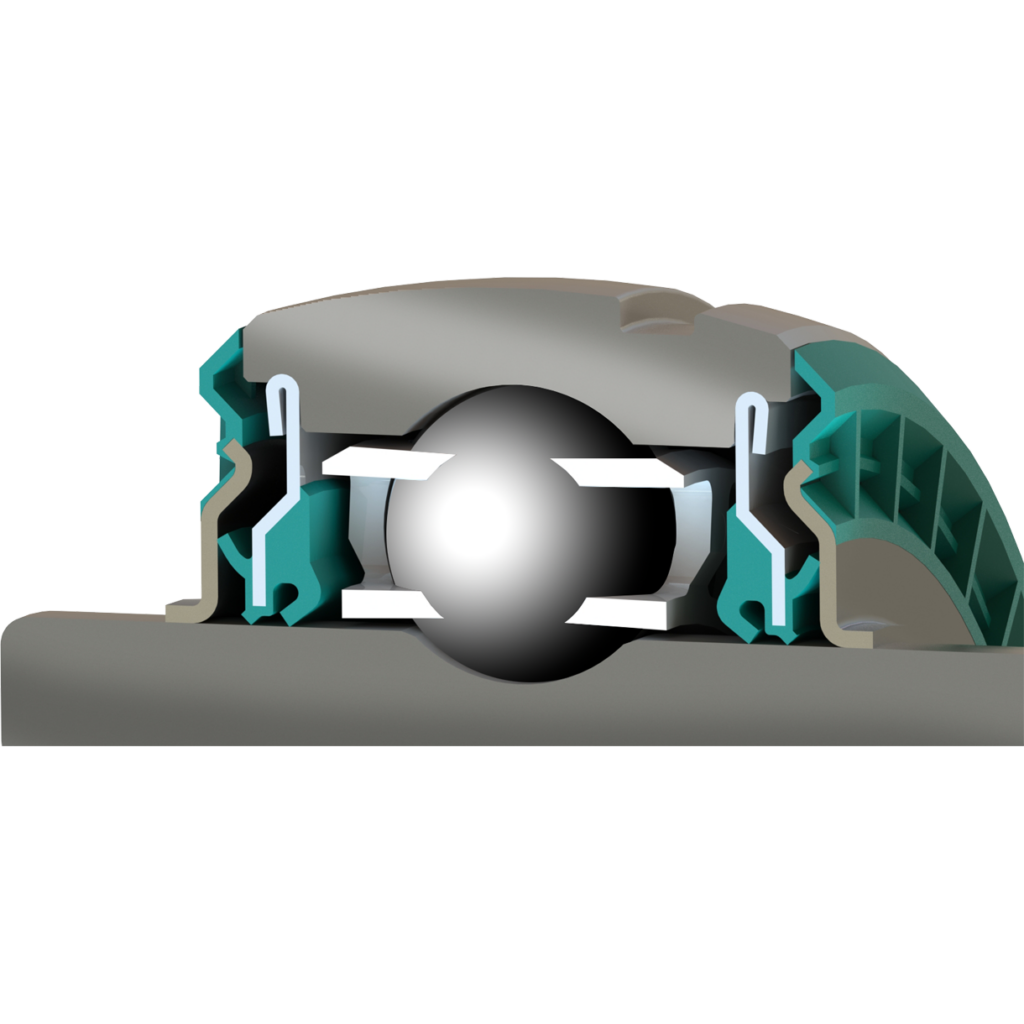

- QuadGuard sealing system with three points of contact and an integrated rubber flinger
- Patented two-piece Maxlife cage with a dedicated grease reservoir around each rolling element
- Mobilith SHC PM 220 synthetic grease delivers up to four times longer life than standard lithium grease
- Pillow block, 2- and 4-bolt flange, tapped base, and wide-slot take-up housing styles
- 3-year material and workmanship warranty
- Optional end covers for improved operator safety
Applications
Industries
Resources
FAQs
Frequently asked questions
Not finding what you need? Contact us for support.

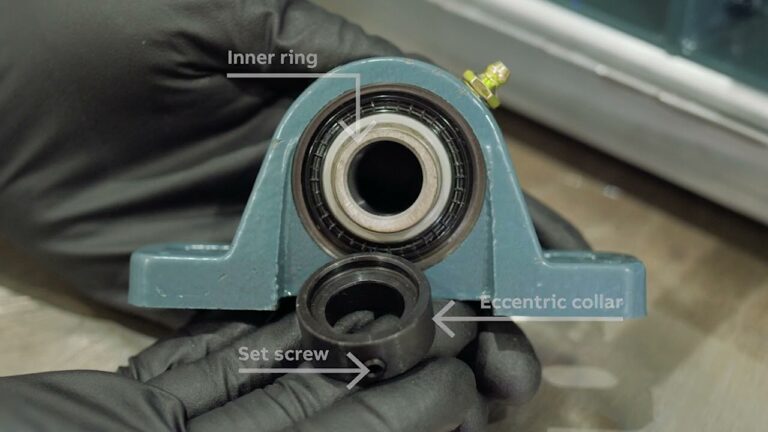

How does an Eccentric Collar attach a bearing to a shaft?
Dodge Eccentric Collar bearings lock the inner ring to the shaft when the collar is rotated one-quarter turn in the direction of shaft rotation. One set screw then secures the collar in place.
What housing styles are available for Dodge Eccentric Collar bearings?
Dodge offers Eccentric Collar bearings in 2-bolt pillow blocks; 2-, 3-, and 4-bolt flanges; tapped bases; piloted flanges; take-up units; cylindrical units; and hangers. Availability varies by series and bore size.
What is the difference between DualGuard and QuadGuard sealing packages?
Dodge Eccentric Collar bearings use DualGuard single-lip seals in standard-duty configurations and QuadGuard triple-lip seals in Harsh Duty configurations. Both packages include a rubberized flinger.
Which grease is used in Dodge Eccentric Collar bearings?
Dodge Eccentric Collar bearings use Unirex N2 lithium grease in standard-duty configurations and Mobilith SHC PM 220 synthetic grease in Harsh Duty configurations.
Are end caps available for Dodge Eccentric Collar bearings?
Yes. Dodge Eccentric Collar bearings in standard-duty and Harsh Duty configurations are end cap ready, with open and closed covers available.
What bore sizes are offered for Dodge Eccentric Collar bearings?
Dodge offers Eccentric Collar bearings in bore sizes from 1/2 inch to 2-15/16 inches. SXR/SXRB covers the full range, and SXV/SXVB runs up to 2-3/16 inches. Availability varies by series and housing style.
What warranty applies to Dodge Eccentric Collar bearings?
Dodge Eccentric Collar bearings in standard-duty packages carry a warranty of 12 months in service or 18 months from manufacture. Harsh Duty packages carry a 3-year warranty. Dodge terms and conditions apply.
Does the eccentric locking collar work in forward and reverse rotation?
Yes. Dodge Eccentric Collar bearings can run in both forward and reverse rotation.
