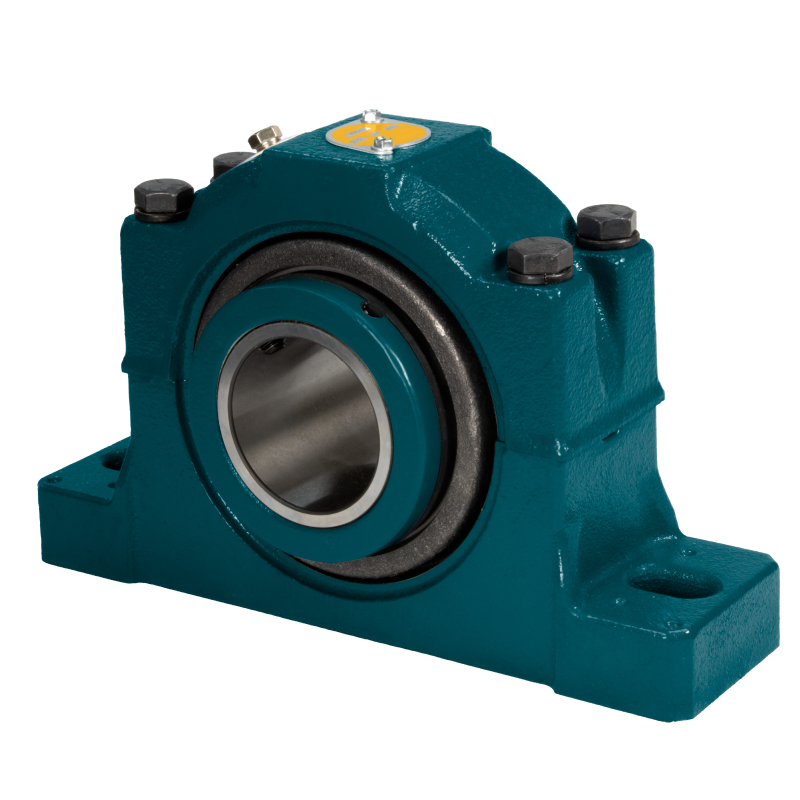

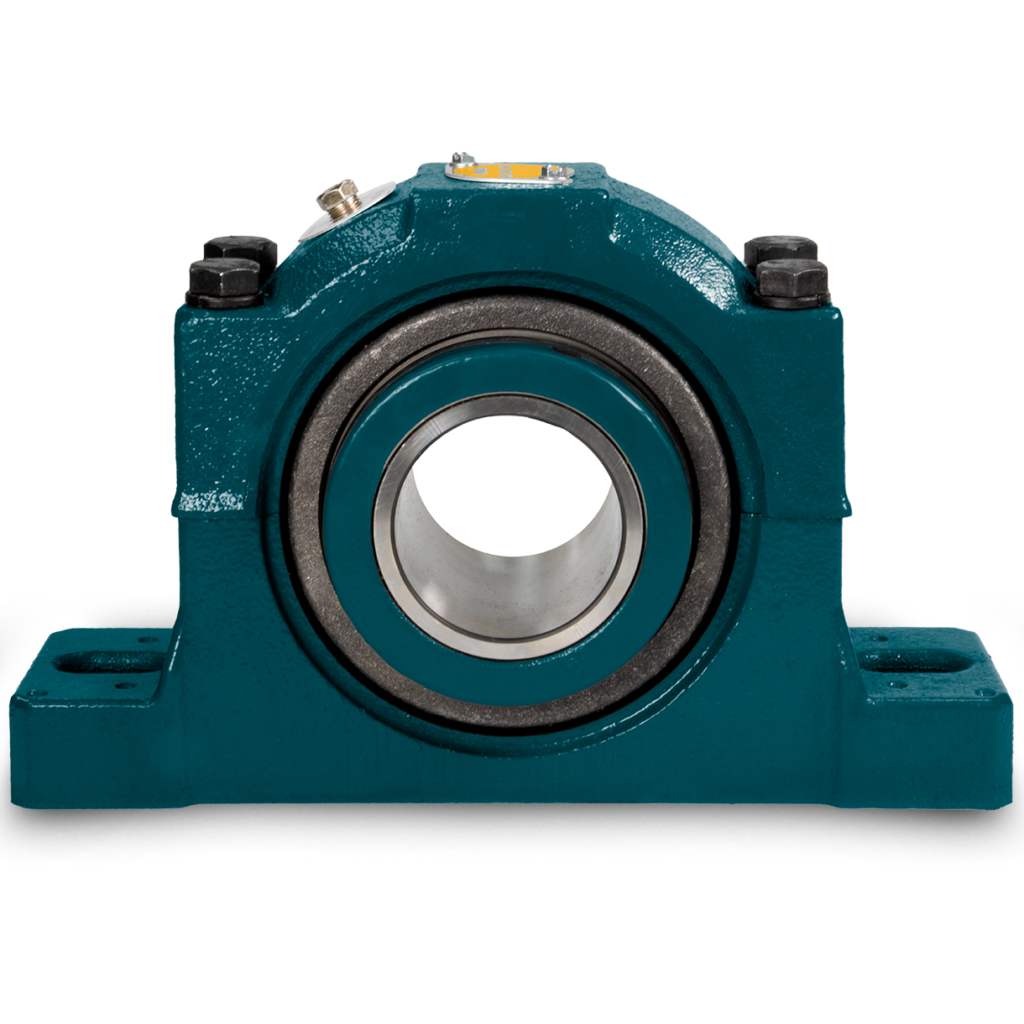

TAF Harsh Duty
Mounted tapered roller bearings
Table of contents
Overview
Strong defense against contamination in harsh environments
Dodge® TAF™ Harsh Duty™ is the upgraded version of the TAF mounted tapered roller bearing for the dirtiest, toughest applications. A split housing and a factory-greased, sealed inner cartridge are manufactured in the USA at our ISO 9001:2015-certified facility in Marion, North Carolina.
In heavy-particulate environments, over half of premature bearing failures are directly caused by contamination. TAF Harsh Duty bearings are built to stop contamination with upgraded sealing, factory-filled with grease, and connected lubricator compatibility.

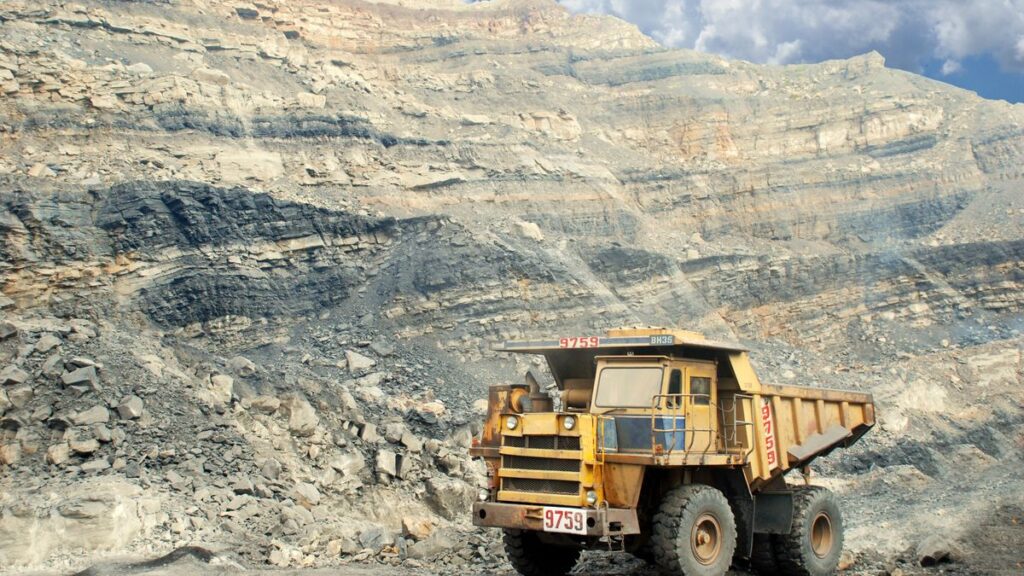

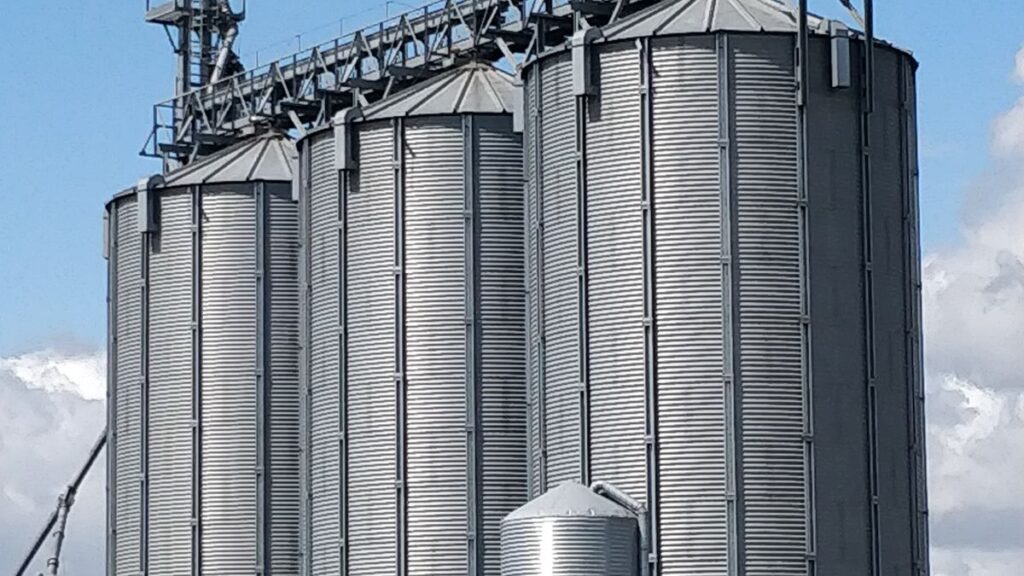

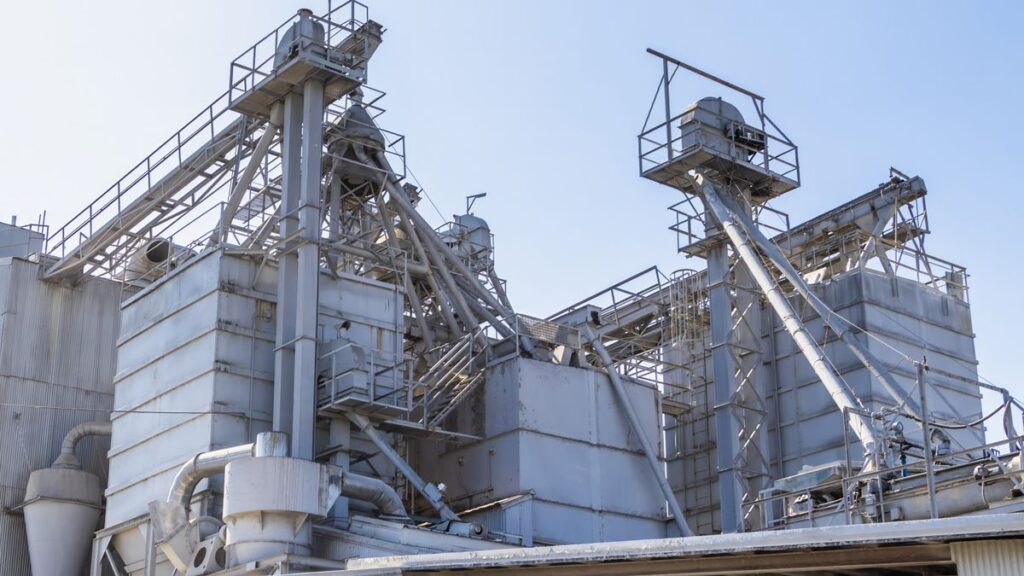

Because the bearings are dimensionally interchangeable with SAF-style pillow blocks, upgrading existing equipment is a simple drop-in. In aggregate, mining, grain, cement, and similar operations, TAF Harsh Duty bearings combine contamination protection and industry-leading capacity ratings to keep critical equipment moving and reduce unplanned downtime.
Key features and benefits
ArmorTect™ four-contact sealing system
Four contact points and two trash guards keep contaminants out and clean grease in, while the mechanically retained seal helps prevent blowout.
100 percent factory grease fill
Each unit is factory-filled to 100 percent with mineral-based or synthetic lithium-complex grease, adding protection against solid and liquid contamination and arriving shaft-ready.
OPTIFY™ Intelli-Lube® compatibility
A pre-drilled, tapped, sensor-ready housing supports OPTIFY Intelli-Lube for hands-free, automatic lubrication that delivers the specified grease volume and interval.
Dual locking collars with 65-degree set screws
Dual locking collars use a 65-degree set screw angle for maximum holding power under radial, axial, and torsional loads.
Up to ±5 degrees of static misalignment
The sealed inner unit accommodates up to ±5 degrees of static misalignment, giving installers more tolerance in challenging applications.
2-year performance guarantee and 3-year warranty
Bearings commissioned and maintained with OPTIFY Intelli-Lube are guaranteed 2 years against solid-particle contamination failure. A 3-year extended warranty covers workmanship and materials defects.
Harsh Duty series
Part of a full line built for contaminated environments
TAF Harsh Duty is one of several Dodge Harsh Duty products designed for highly contaminated applications. The series also includes Type E Harsh Duty mounted tapered roller bearings and Harsh Duty mounted ball bearings.
Applications
Industries
Resources
FAQs
Frequently asked questions
Not finding what you need? Contact us for support.
What housing styles are offered for TAF Harsh Duty?
TAF Harsh Duty is offered in 2-bolt and 4-bolt pillow block housings. Both housing styles are available in non-expansion and expansion configurations across supported bore sizes.
What bore sizes are available for TAF Harsh Duty?
TAF Harsh Duty bore sizes range from 1-7/16 through 7 inches. 2-bolt units cover 1-7/16 through 3-1/2 inches, and 4-bolt units cover 2-7/16 through 7 inches. Contact your local Dodge Sales Engineer for additional sizes.
What grease options are available for TAF Harsh Duty?
TAF Harsh Duty is available with two lithium-complex grease options: mineral-based and synthetic. Each unit is factory-filled to 100 percent for added contamination protection and arrives shaft-ready.
How does the ArmorTect sealing system work?
The ArmorTect sealing system on TAF Harsh Duty uses four points of contact and two trash guards. The mechanically retained seal helps prevent seal blowout while allowing contaminated grease to purge and directing new grease to the bearing.
Can TAF Harsh Duty use automatic lubrication?
TAF Harsh Duty bearings are compatible with OPTIFY Intelli-Lube, a connected, automatic single-point lubricator. When properly commissioned and maintained with Intelli-Lube, the 2-year performance guarantee covers failure caused by solid-particle contamination.
How is TAF Harsh Duty different from a standard TAF bearing?
TAF Harsh Duty adds upgraded sealing and lubrication to the TAF design. It uses the ArmorTect sealing system, is factory-filled to 100 percent with grease, and offers mineral-based or synthetic lithium-complex grease for heavily contaminated applications.
Is TAF Harsh Duty dimensionally interchangeable with SAF-style pillow block bearings?
TAF Harsh Duty bearings are dimensionally interchangeable with SAF-style pillow block mounted bearings. Match the housing style, bore, expansion configuration, and application requirements when selecting a replacement.
Where is TAF Harsh Duty intended to operate?
TAF Harsh Duty bearings are intended for highly contaminated, heavy-particulate environments. Applications include aggregate, mining, grain, cement, and similar operations where contamination can threaten bearing life and uptime.
