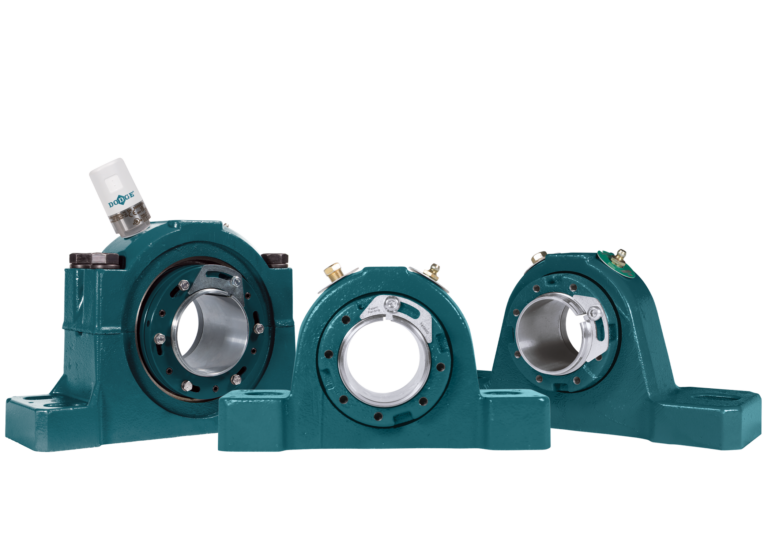

Safety Mount® Family

Mounted Spherical Roller Bearings

The revolutionary family of bearings for a safer, faster, and easier installation every time

With the launch of our patented push-pull adapter mounting system in 1996, the Safety Mount family of mounted spherical roller bearings has grown to represent the pinnacle of safety, reliability, and innovation. Shaft-ready out of the box, our Safety Mount bearings change the game by providing an installation with no guesswork or brute force required. The built-in mounting and dismounting system uses leverage to create a secure fit on the shaft and the predetermined clearance removes subjective calculations for a correct installation every time. With Safety Mount, experience the precision and reliability of innovation at work.

Key features and benefits

Integral lock nut is engineered for both mounting and dismounting without specialized tools or destructive methods
Pre-assembled and pre-lubricated to be shaft-ready out of the box
Patent-pending, single-bolt lock plate enables easy mounting in any position
Outer-ring riding steel cage rides at half the speed of competitive solutions for less wear and enhanced bearing life
Tapered adapter sleeve mitigates shaft damage while providing superior holding power
Compatible with commercial shaft tolerances
Proprietary inner ring design maximizes area of contact for greater axial holding power than the competition
High-capacity, double-row spherical rollers optimize load-to-speed ratio capabilities and accommodate dynamic misalignment
Field-convertible between expansion and non-expansion
Mechanically-retained Trident™ triple-lip seal prevents seal blowout and contamination
Optional Labyrinth non-contact seal for high-speed or high-temperature applications
OPTIFY™ Intelli-Lube™ compatible to effortlessly extend the life of your bearings
Sensor-ready for remote condition monitoring

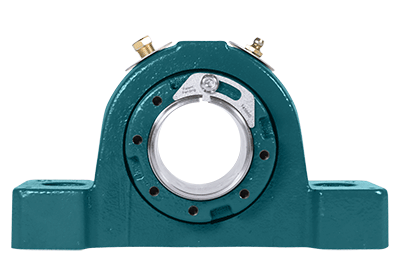

IP

Original, patented design
that launched in 1996

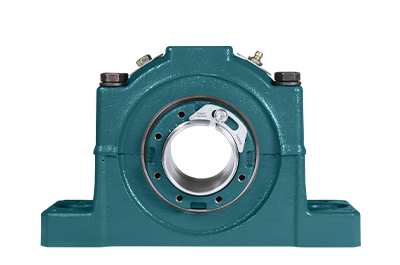

Unitized, cast-iron housing
Type E-dimensioned housing option provides a drop-in interchange to meet high-capacity application requirements
Rugged cast-steel housing option offers superior durability and maximum tensile strength for the harshest applications

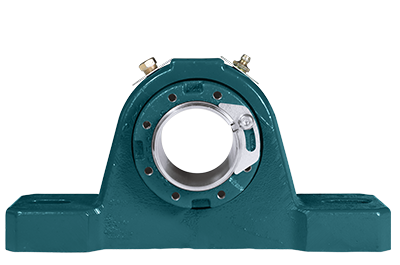

ISN

Shaft-ready out of the box, unlike
traditional SN plummer blocks
Drop-in replacement to traditional
SN-dimensioned products
Maintains seal contact even
when misaligned
Built-in mounting and dismounting mechanism eliminates need for dangerous tools upon removal
